Compact modular air monitoring for gases, particulate matter, and site data.
Airpointer® is a compact, modular air quality monitoring system designed for point-of-interest measurement of gases, particulate matter, and additional environmental sensor data.
Next generation compact air quality monitoring.
The system combines a compact base unit with configurable modules and browser-based access in one field-ready monitoring platform — see System Design below for the full module lineup.
Because Airpointer® can be configured for each application, users can monitor pollutants and site conditions where local data is needed most.
One compact platform for pollutant monitoring, sensors, and data access.
Airpointer® supports modular analyzer and sensor configurations for ambient air, industrial, traffic, indoor, mobile, and permanent monitoring applications.
Classic Air Pollutants
Configure the system for SO2, H2S, CO, NO, NO2, NOx, O3, VOCs, BTEX, and other target compounds.
PM Monitoring Options
PM configurations can support PM10, PM2.5, TSP, nephelometer-based PM, laser spectrometer PM, or approved PM analyzer options.
Site Data Inputs
Additional sensors can include meteorology, traffic count, noise, GPS, temperature, humidity, light intensity, and other external instruments.
Browser-Based Review
Module and sensor data are accessible locally or online — see Data and Access below for details.
Modular construction for application-specific air monitoring.

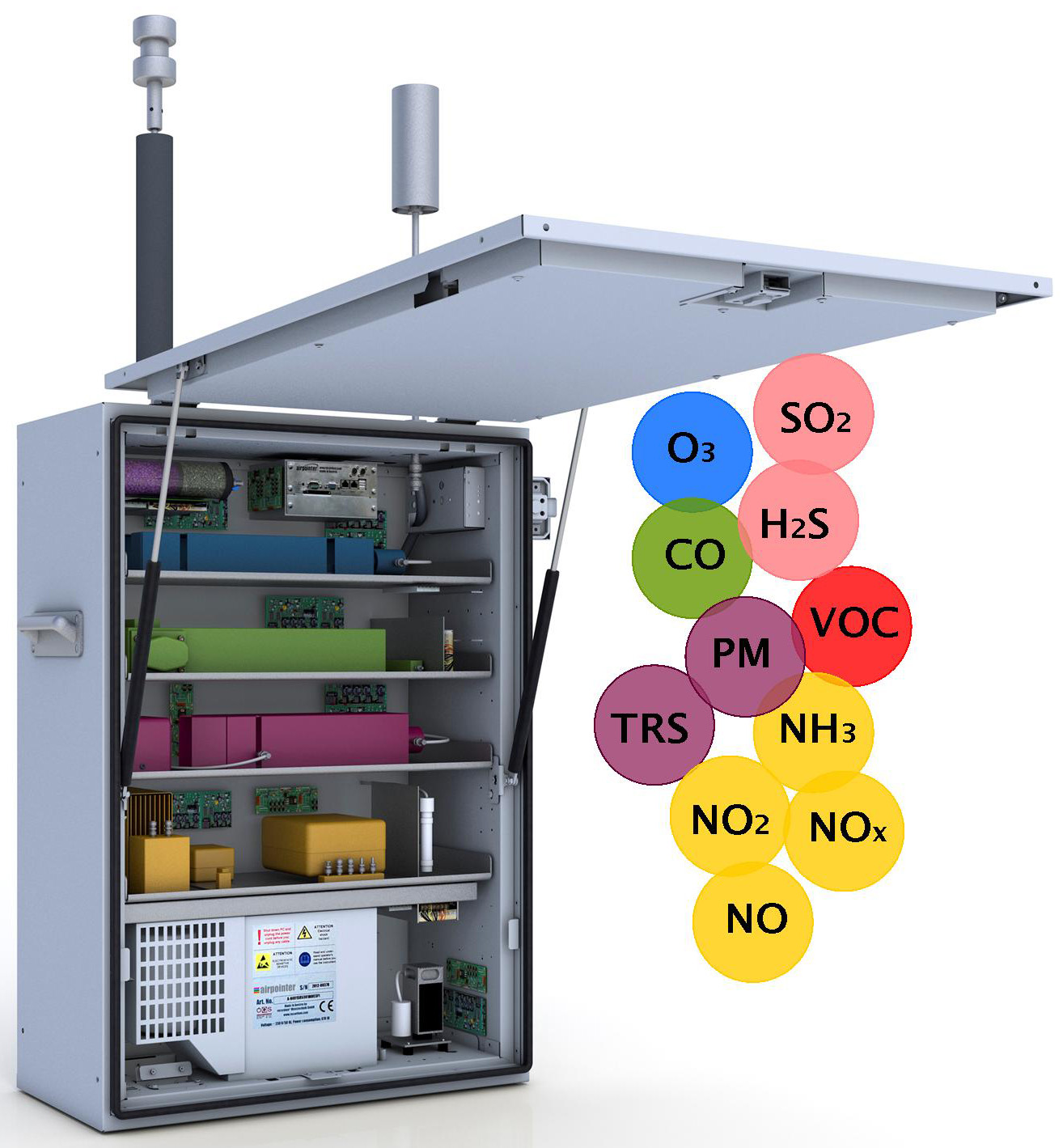

Airpointer® uses a modular design built around a base unit, analyzing modules, sensor modules, and optional external inputs. This allows each system to be configured around the pollutants, data needs, and installation requirements of the site.
The compact housing allows installation in locations where traditional monitoring stations may be too large, while the internal temperature and energy management systems support stable field operation.
Module and Sensor Options
- Gas Modules: Ozone, carbon monoxide, sulfur dioxide, hydrogen sulfide, nitrogen oxides, ammonia, VOC, and BTEX options.
- PM Options: PM10, PM2.5, TSP, nephelometer, laser spectrometer, and approved PM analyzer configurations.
- Sensor Inputs: Meteorology, wind direction, wind velocity, traffic count, noise, GPS, and other third-party sensors.
- Interfaces: External instruments can be integrated through Ethernet, RS-232, analog signals, and Modbus-style communication options.
Flexible monitoring with lower operating effort.
Airpointer® is designed to be easy to install, cost-effective to operate, and simple to maintain while supporting high-quality monitoring data.
Compact Installation
The compact cabinet design supports a wide range of mounting options — see Deployment Options below for specifics.
Configurable Modules
Analyzer modules and sensor inputs can be selected to match each monitoring application.
Lower Operating Effort
Advanced temperature and energy management reduces power consumption compared with conventional monitoring stations.
Remote Data Access
Full remote access is available without special software — see Data and Access below.
Permanent, mobile, and point-of-interest deployment.
Airpointer® can be used for permanent monitoring where continuous data is required, or for temporary and mobile monitoring where measurements need to move between sites.
This range of mounting and deployment options lets a single system serve both fixed monitoring programs and short-term or mobile campaigns without requiring different hardware for each.
Deployment Options

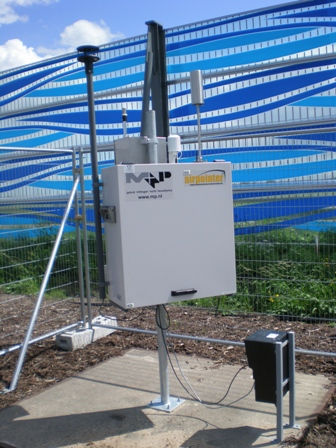

- Permanent: Pole or wall mounting for continuous monitoring over extended periods.
- Mobile: Vehicle, pickup truck, trailer, or temporary monitoring campaigns.
- Point of Interest: Hot spots, traffic corridors, public areas, schools, airports, and indoor locations.
- Fast Startup: Designed to be ready for operation within approximately 30 minutes after setup.
Reliable air quality data where local conditions matter.
Local air quality can vary significantly from large-scale regional monitoring results. Airpointer® supports focused monitoring near emissions sources, traffic corridors, public spaces, and sensitive locations.
Industrial and Fence Line Monitoring
- Oil and gas fence line monitoring
- Combustion process gases
- Volatile emissions
- Petrochemical, refinery, mining, and plant perimeter applications
Traffic and Roadside Monitoring
- Road traffic-related air quality monitoring
- Traffic tunnels and roadway hot spots
- Traffic count and average speed sensor integration
- NOx and PM trend review near vehicle activity
Public Spaces and Indoor Air Quality
- Schools, public buildings, shopping malls, and airports
- Shopping streets, traffic junctions, parks, and sports grounds
- Indoor air quality monitoring for frequently occupied spaces
- Research, community studies, and monitoring networks
Access your data from any browser.
Airpointer® is designed for connected monitoring. Authorized users can access data through an internet connection using a web browser, with no special software required.
Easy Data Export
Parameters can be downloaded for local review, reporting, and further analysis.
Clear Visualization
Measurement data can be displayed in time diagrams, charts, and graphics for easier review.
Organized Monitoring
Measurements can be assigned to defined time periods and locations for project-based monitoring.
Password Protection
User access can be controlled through login levels, with optional alarm functions for unauthorized access.
Built-in quality assurance and maintenance support.
Airpointer® includes functions for quality control, calibration, diagnostics, and maintenance, helping users protect data quality during long-term monitoring.
Internal Zero Air
Internal zero air generation supports automatic or manual zero point checks for installed modules.
Span Gas Port
A span gas port in the maintenance door allows calibration without opening the front door.
Operating Data
Key operating parameters can be monitored and saved for preventive fault detection and troubleshooting.
Quick Service Access
The maintenance door provides access to the filter, network connection, calibration gas inlet, and service points.
Available models and common system features.
Airpointer® can be configured in multiple model formats depending on the number of modules, PM requirements, installation style, and monitoring program needs.
Airpointer® Configurations
- Airpointer 2D: Supports two standard monitoring modules.
- Airpointer 4D: Supports four standard monitoring modules.
- Airpointer PM HC: Supports PM-focused configurations with approved PM analyzer options.
- Standard Modules: Selected from the gas and PM module options described in System Design above.
System Features
- Construction: Well-isolated double aluminum construction with removable module drawers.
- Equipment: Internal air conditioning, temperature control, maintenance door, cylinder lock, and zero air supply.
- Operating Range: Designed for outdoor operation with optional heating for lower temperature environments.
- Options: Mounting brackets, wireless communication, sample gas conditioning, external device integration, and mobile base frames.
