AQMesh Small Sensor Air Quality Monitoring
AQMesh pods are a compact, cost-effective solution for localized air quality monitoring — measuring up to 8 gases, particulate matter, and meteorological conditions with cloud-based data management and secure online access.
How AQMesh Works
Each pod adds a flexible measurement point around communities, roadways, industrial sites, campuses, and existing air monitoring networks, giving teams localized, near real-time data wherever it’s needed.
Note: AQMesh is best used as a complementary source of information. For mandatory or regulatory monitoring, reference-quality instruments may still be required.
Configurable air quality data in one compact pod
AQMesh pods can be configured around the needs of each project, including gas pollutants, particulate matter, and supporting environmental conditions.
Gas Pollutants
Measure gases such as NO, NO2, NOx, O3, CO, SO2, CO2, and H2S depending on configuration.
Particulate Matter
Support for PM1, PM2.5, PM10, and particle count using optical particle counter technology.
Environmental Data
Measure supporting conditions such as pod temperature, humidity, pressure, and optional noise monitoring.
Online Data Tools
View tables, graphs, downloads, multi-user access, password control, and optional API data access.
Increase monitoring coverage with flexible sensor networks
Multiple AQMesh pods can be deployed together to help identify neighborhood-level trends, localized changes, and potential pollution hot spots.
This flexibility lets teams phase deployments across budget cycles and scale coverage up or down without committing to permanent infrastructure at every site.
Network Benefits
- Expand spatial resolution between reference stations
- Support hyperlocal air quality studies
- Deploy across a wide range of site types and monitoring contexts
- Relocate pods as monitoring priorities change
Where AQMesh fits best
AQMesh is suited for projects that need localized information, trend visibility, and flexible monitoring locations without placing a full reference station at every point.
Community Monitoring
Track air quality trends across neighborhoods, municipalities, campuses, and sensitive community areas.

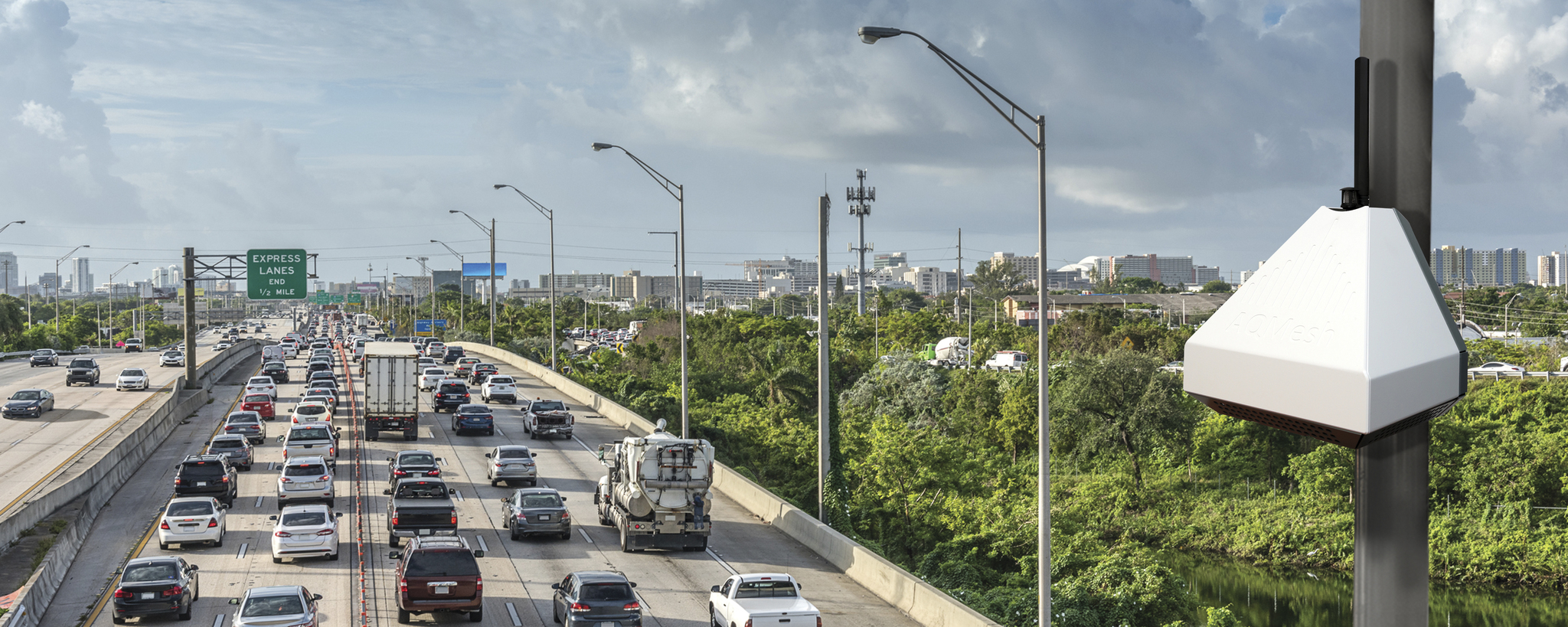

Roadside & Urban Studies
Support smart city, traffic, and exposure studies with localized data from multiple monitoring points.
Industrial & Fence Line Monitoring
Place pods around facilities, boundaries, or project sites to better understand changes in nearby air quality.
Base system details
Final specifications depend on selected sensors, communications, power options, and project requirements.
Physical
- Enclosure: ABS, IP65 protection
- Temperature: -20°C to +40°C
- Humidity: 15 to 95% RH
- Mounting: Wall or post bracket
- Weight: Approx. 2 to 2.7 kg
Power Options
- External DC: 9–24V DC
- Battery options: Available depending on pod specification

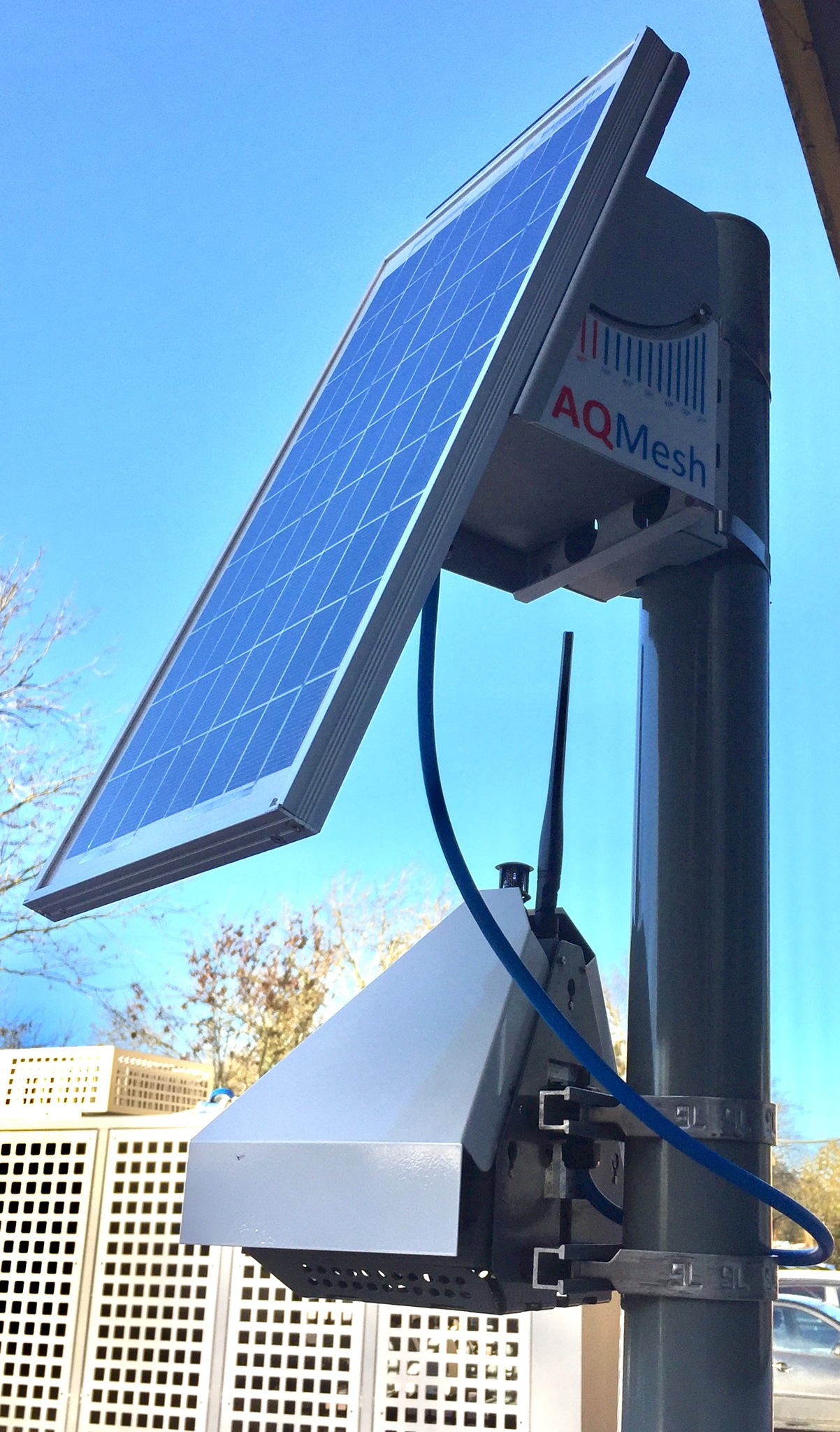

- Solar power: Available for longer-term deployments
- Measurement strategy: Impacts power life and service interval
Data & Communications
- Measurement period: Variable from 1 minute to 1 hour
- Transmission: Configurable reporting intervals
- Software: Browser-based server access
- Data access: Tables, graphs, downloads, users, and optional API
Ready to expand your monitoring network with AQMesh?
Contact Ambilabs to plan a sensor network for your site, or review full specifications in the product brochure.
