DETECT™ Micro, Mini, and Max Enclosures
The Ambilabs® DETECT™ line of climate-controlled enclosures reduces power consumption with a modular design that adapts as your monitoring needs change — engineered and manufactured in the USA.
Climate-controlled enclosure systems for ambient air monitoring applications.
DETECT™ enclosures are designed to house and support instrumentation used in ambient air monitoring applications, including CO, NO2, O3, PM, SO2, BTEX, H2S, CO2, NOx, NH3, VOCs, black carbon, calibration equipment, and other site-specific instrumentation.
Each enclosure can be configured around the monitoring application, analyzer package, power requirements, HVAC needs, sample manifold layout, pump cabinet setup, and field deployment requirements.
Built for analyzer protection, service access, and field installation.
DETECT™ systems support compact ambient monitoring sites, fixed station installations, emergency deployments, and custom analyzer configurations.
Monitoring Layout
Configured for analyzers, particulate monitors, UPS units, keyboards, displays, and site-specific monitoring needs.
Insulated Construction
Powder-coated marine-grade aluminum construction with 2″ insulation helps maintain stable temperature-controlled operation.
Manifold Integration
Each model includes a 1.5″ FNPT top fitting for sample manifold integration and ambient air monitoring configurations.
Separate Pump Cabinet
A separate pump cabinet helps reduce heat inside the temperature-controlled analyzer space and improves service access.
Three enclosure sizes for different ambient monitoring packages.
DETECT™ enclosures are available in Micro, Mini, and Max configurations to support different analyzer counts, rack layouts, cylinder requirements, and field deployment needs. Each model can be configured around the monitoring application, available site space, service access, power requirements, and instrumentation package.
Review the model sections below to compare enclosure size, analyzer capacity, access layout, HVAC configuration, electrical service, and optional monitoring features.

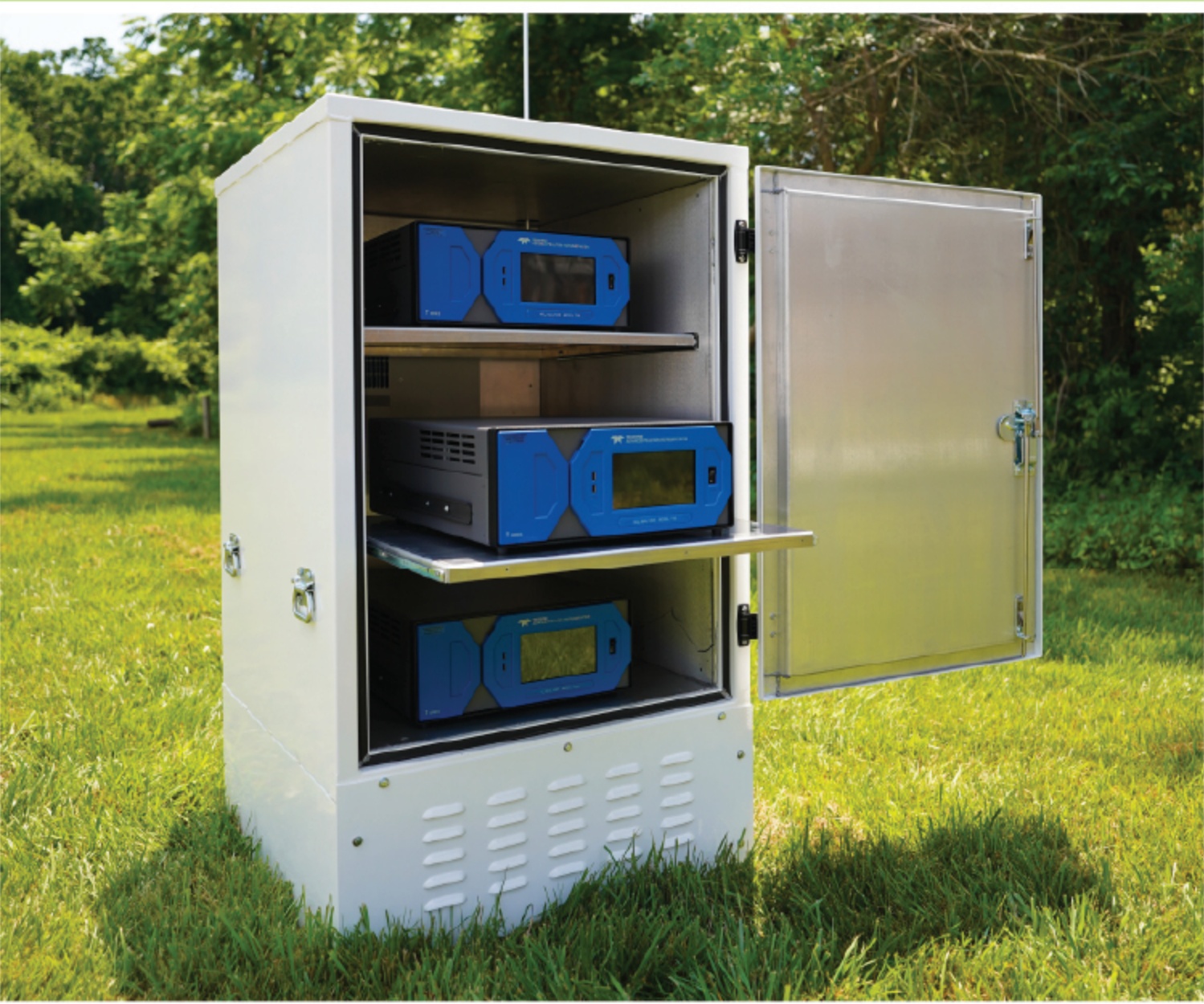

Compact enclosure for smaller analyzer packages.
DETECT™ Micro provides climate-controlled analyzer protection in a smaller enclosure footprint, with rollout shelves and front-door service access for compact ambient monitoring applications.
Dimensions
- Exterior Dimensions: 56″H x 32″W x 34″D
- Interior Dimensions: 39.5″H x 27.5″W x 31″D
Capacity and Features
- Includes two rollout shelves for easier analyzer access and service.
- Supports up to three analyzers.
- Single front door access keeps the enclosure simple to install and maintain.
- 1700 BTU cooling with a 400W heater.
- 120V 20A standard electrical service with fused disconnect.
- Load center with breakers and one internal 5-20R duplex outlet.
- Electrical raceway and aluminum base with anchoring points.
- Optional particulate monitor passthrough for expanded ambient monitoring capability.
Rack-based enclosure for analyzer and cylinder configurations.
DETECT™ Mini provides expanded analyzer rack space, front and rear access, and room for gas cylinders in a compact field-ready enclosure.
Dimensions
- Exterior Dimensions: 76″H x 40″W x 36″D
- Interior Dimensions: 55″H x 33″D x 35″W
Capacity and Features
- Includes one 31U rack for analyzer and monitoring equipment mounting.
- Supports up to four analyzers and up to two gas cylinders.
- Front and rear door access improves installation, calibration, and maintenance workflow.
- 5000 BTU cooling with a 1000W heater.
- 120/240V 20/30A standard electrical service with fused disconnect.
- Load center with breakers, one internal 5-20R duplex outlet, and one 15-20R GFCI duplex outlet in the pump cabinet.
- Electrical raceway and aluminum base with anchoring points for secure field deployment.
- Optional particulate monitor passthrough for expanded air quality monitoring configurations.

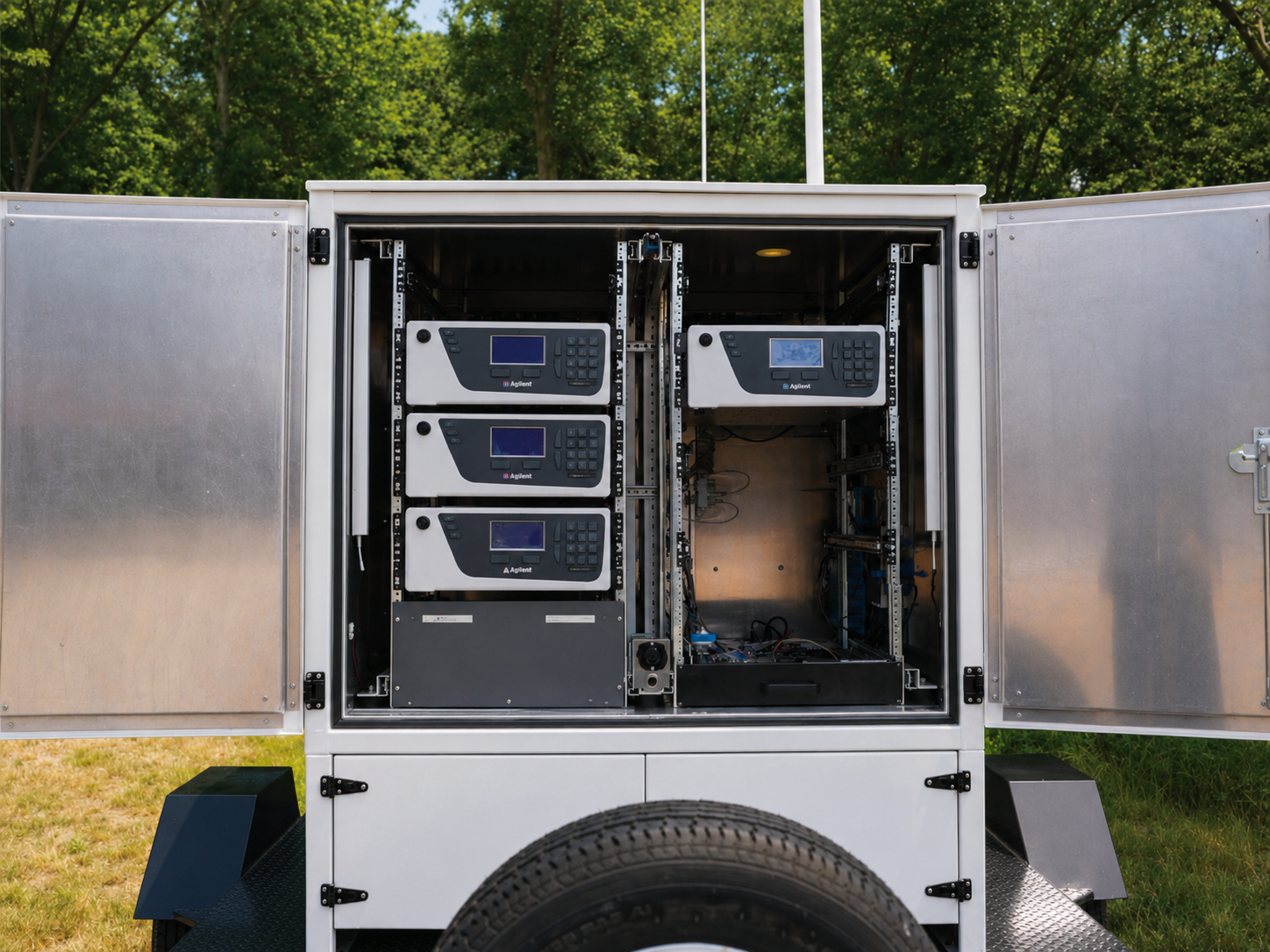

High-capacity enclosure for larger ambient monitoring systems.
DETECT™ Max supports larger analyzer packages, dual-rack layouts, higher analyzer capacity, and advanced configurations that require additional rack and cylinder space.
Dimensions
- Exterior Dimensions: 64″H x 55″W x 56″D
- Interior Dimensions: 40″H x 53″D x 49″W
Capacity and Features
- Includes two 22U racks for analyzer and monitoring equipment mounting.
- Supports up to ten analyzers and up to four gas cylinders.
- Front and rear door access helps simplify service, calibration, and system maintenance.
- 5000 BTU cooling with a 1000W heater.
- 50 amp 120/240 VAC with fused disconnect, plus 30 amp 240 VAC for light loads.
- Load center with breakers, four internal 5-20R duplex outlets, and one 15-20R GFCI quad outlet in the pump cabinet.
- Electrical raceway and aluminum base with anchoring points for stable installation.
- Separate rear area for mounting gas cylinders and nephelometers in advanced air monitoring applications.
Designed for compact, fixed, mobile, and emergency air monitoring needs.
DETECT™ enclosures can be configured for different field requirements where conventional shelters may be too large, too expensive, or more complex than the application requires.
Criteria Pollutant Stations
Support monitoring packages for common ambient air pollutants, particulate monitoring, and related calibration equipment.
Fence Line and Facility Monitoring
Configure analyzer packages around facility boundaries, industrial monitoring goals, local air quality studies, and site-specific compounds.
Short-Term and Project-Based Use
Compact enclosures can support temporary studies, emergency response monitoring, supplemental stations, and project-based field deployments.
